HANMATEK 2 Channel 2 IN 1 Digital Handheld Oscilloscope Multimeter Tester 50MHz
HANMATEK 2 Channel 2 IN 1 Digital Handheld Oscilloscope Multimeter Tester 50MHz
HANMATEK 2 Channel 2 IN 1 Digital Handheld Oscilloscope Multimeter Tester 50MHz
HANMATEK 2 Channel 2 IN 1 Digital Handheld Oscilloscope Multimeter Tester 50MHz
HANMATEK 2 Channel 2 IN 1 Digital Handheld Oscilloscope Multimeter Tester 50MHz
HANMATEK 2 Channel 2 IN 1 Digital Handheld Oscilloscope Multimeter Tester 50MHz
HANMATEK 2 Channel 2 IN 1 Digital Handheld Oscilloscope Multimeter Tester 50MHz
HANMATEK 2 Channel 2 IN 1 Digital Handheld Oscilloscope Multimeter Tester 50MHz
HANMATEK 2 Channel 2 IN 1 Digital Handheld Oscilloscope Multimeter Tester 50MHz
HANMATEK 2 Channel 2 IN 1 Digital Handheld Oscilloscope Multimeter Tester 50MHz
HANMATEK 2 Channel 2 IN 1 Digital Handheld Oscilloscope Multimeter Tester 50MHz

HANMATEK 2 Channel 2 IN 1 Digital Handheld Oscilloscope Multimeter Tester 50MHz

Regular price
$199.99
Sale price
$169.99
Product Code: F0076
US Seller. Free Shipping from California. 30 Days Free Return.

Features:

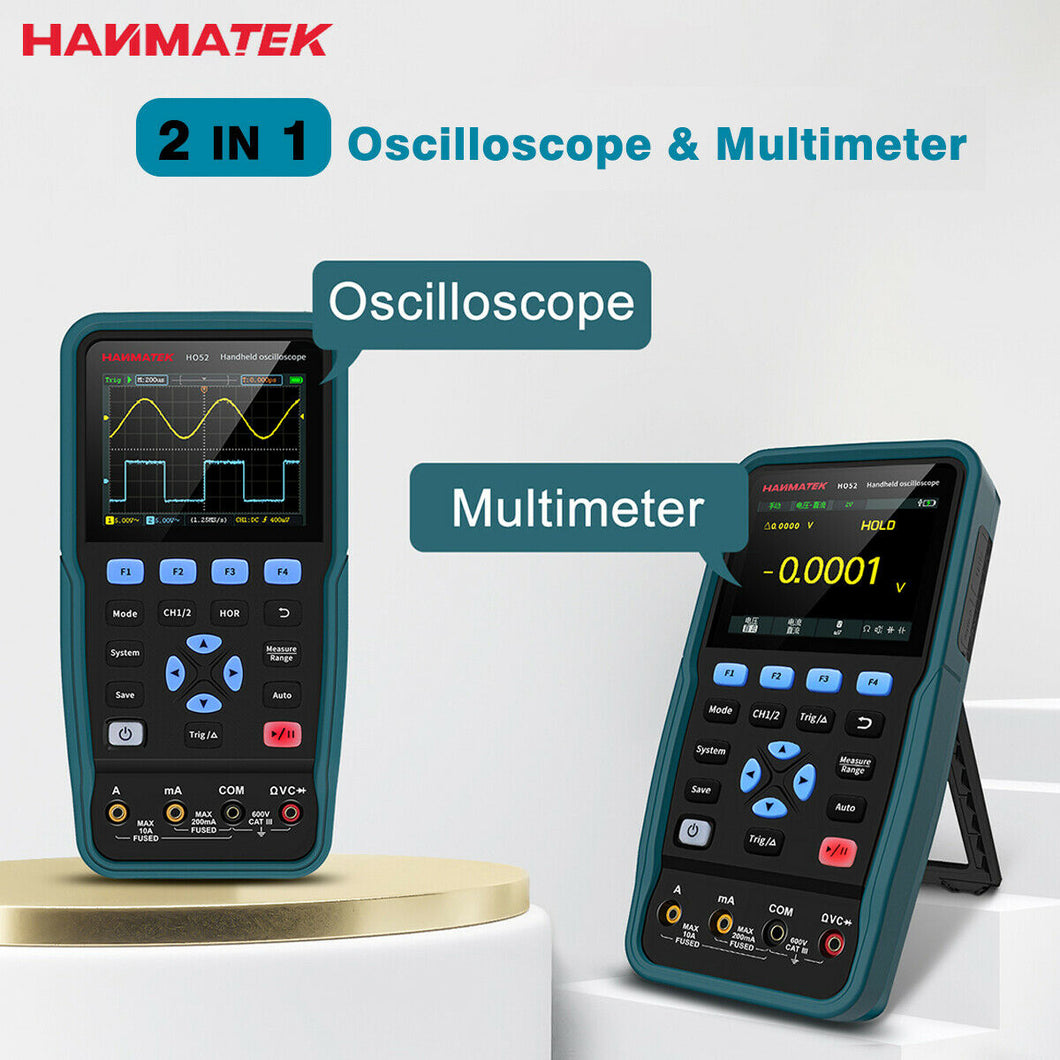

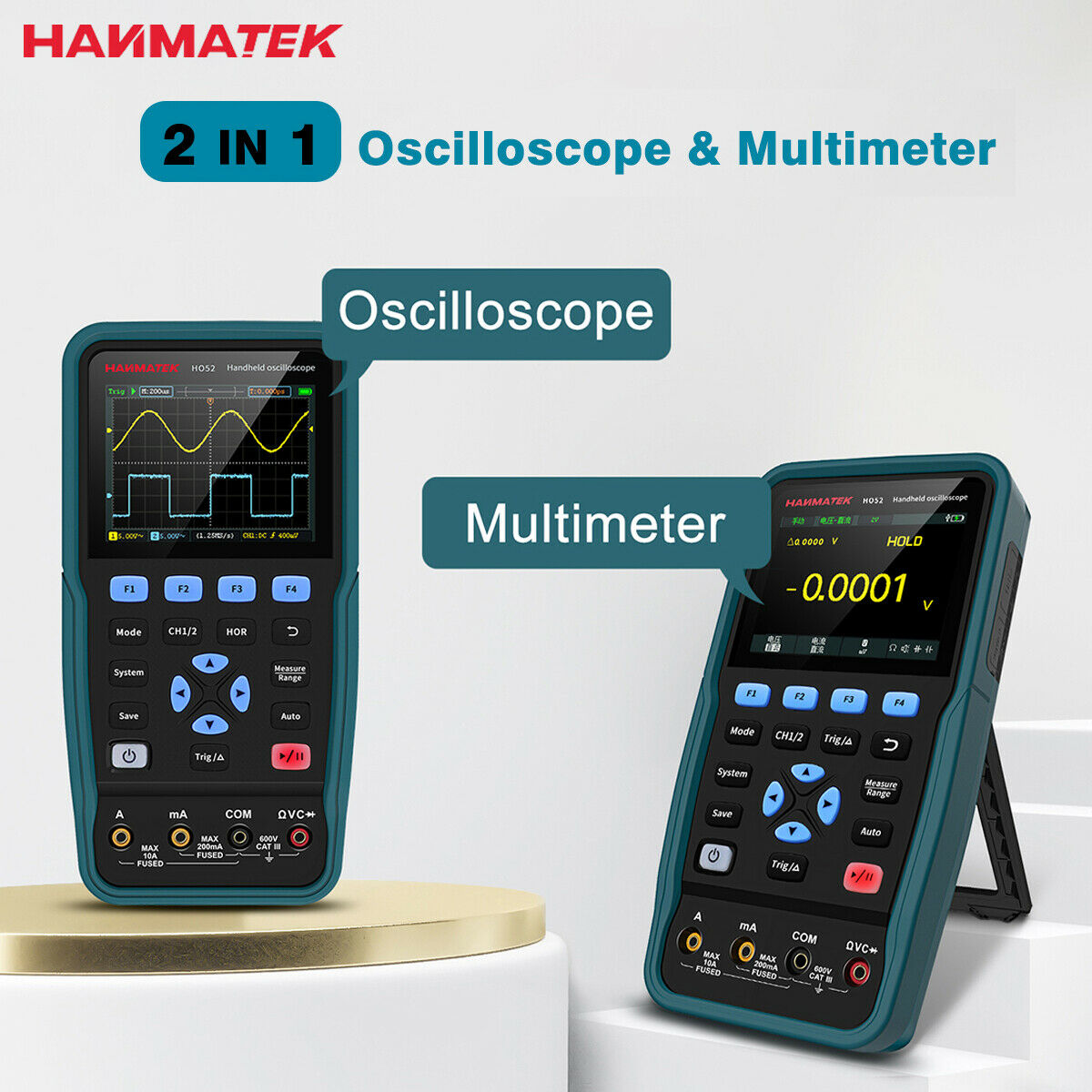

2 in 1 oscilloscope & multimeter: This HANMATEK oscilloscope with powerful functions, also combine with the multimeter's functions, you do not need to buy them one by one.

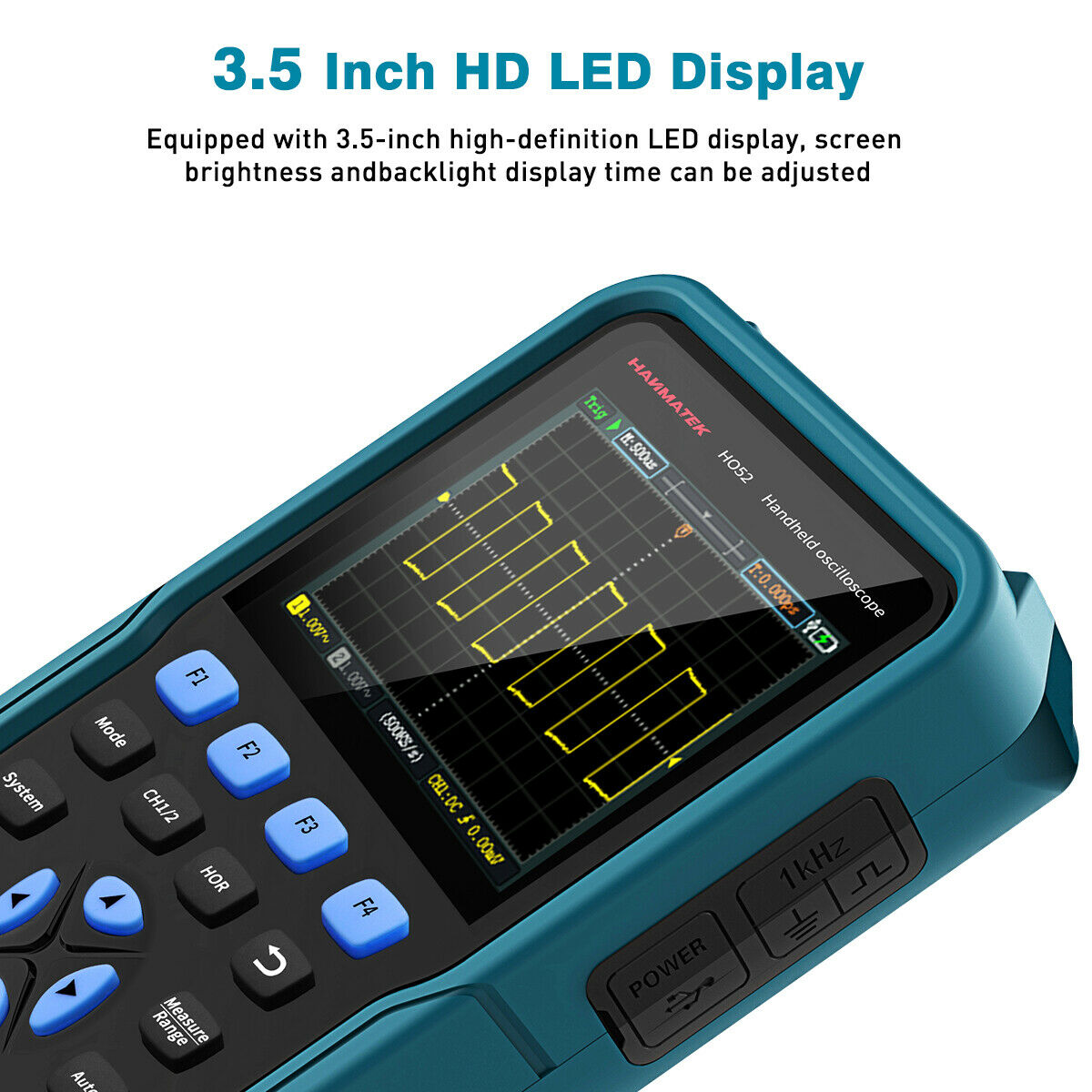

With 3.5 inch (320x240) high resolution TFT color LCD screen, which display clear and delicate for you to observe of waveform details easily .

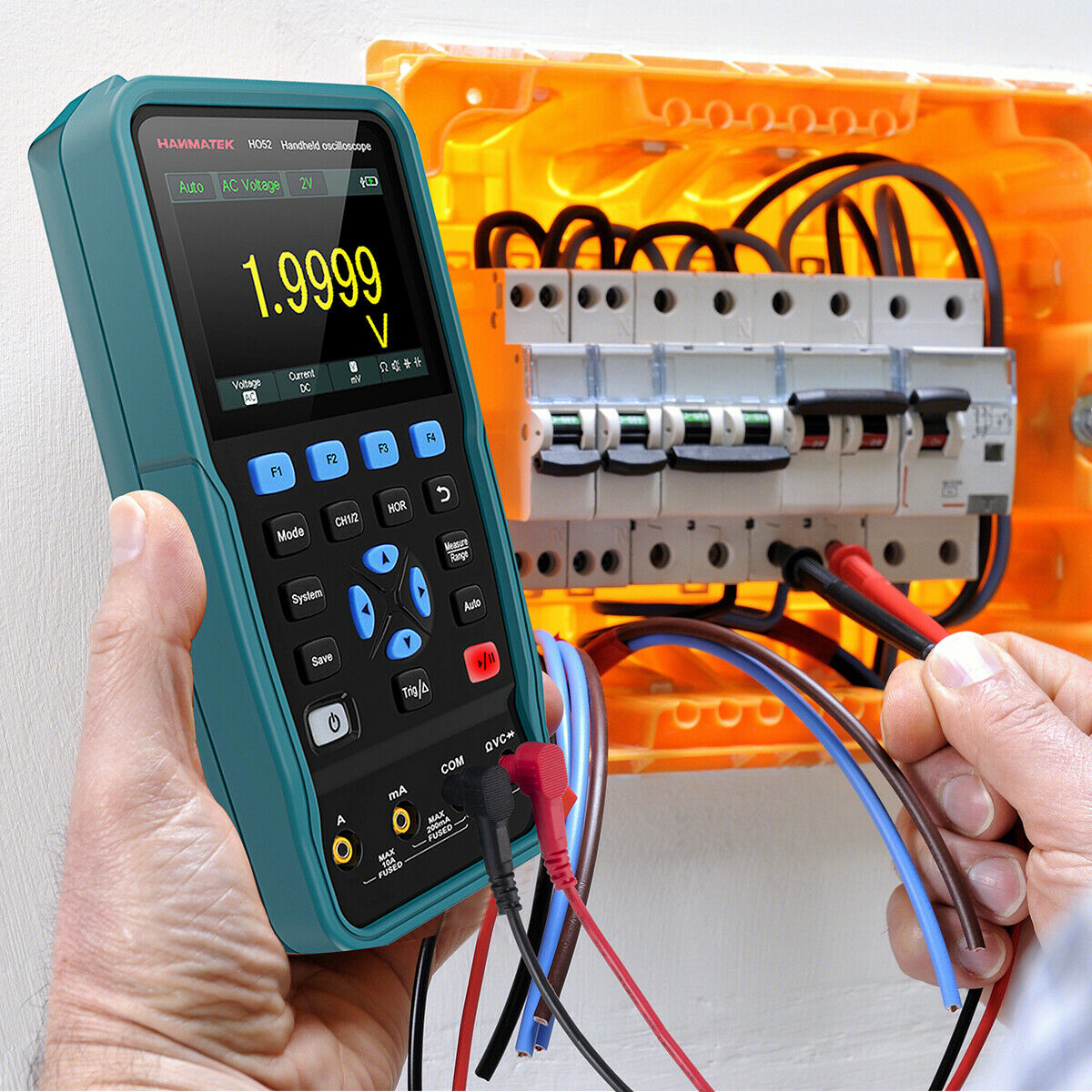

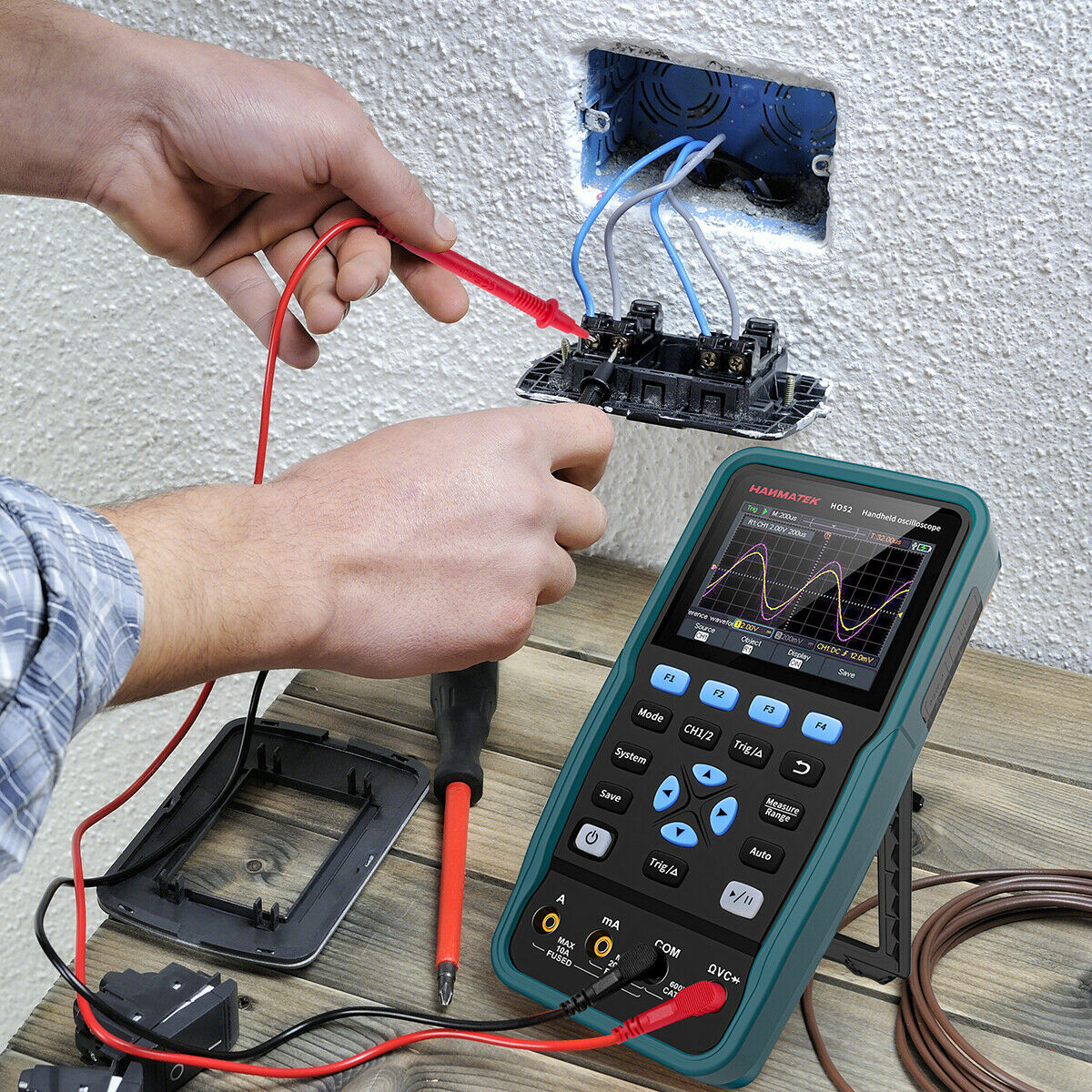

Wide applications: Suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc.

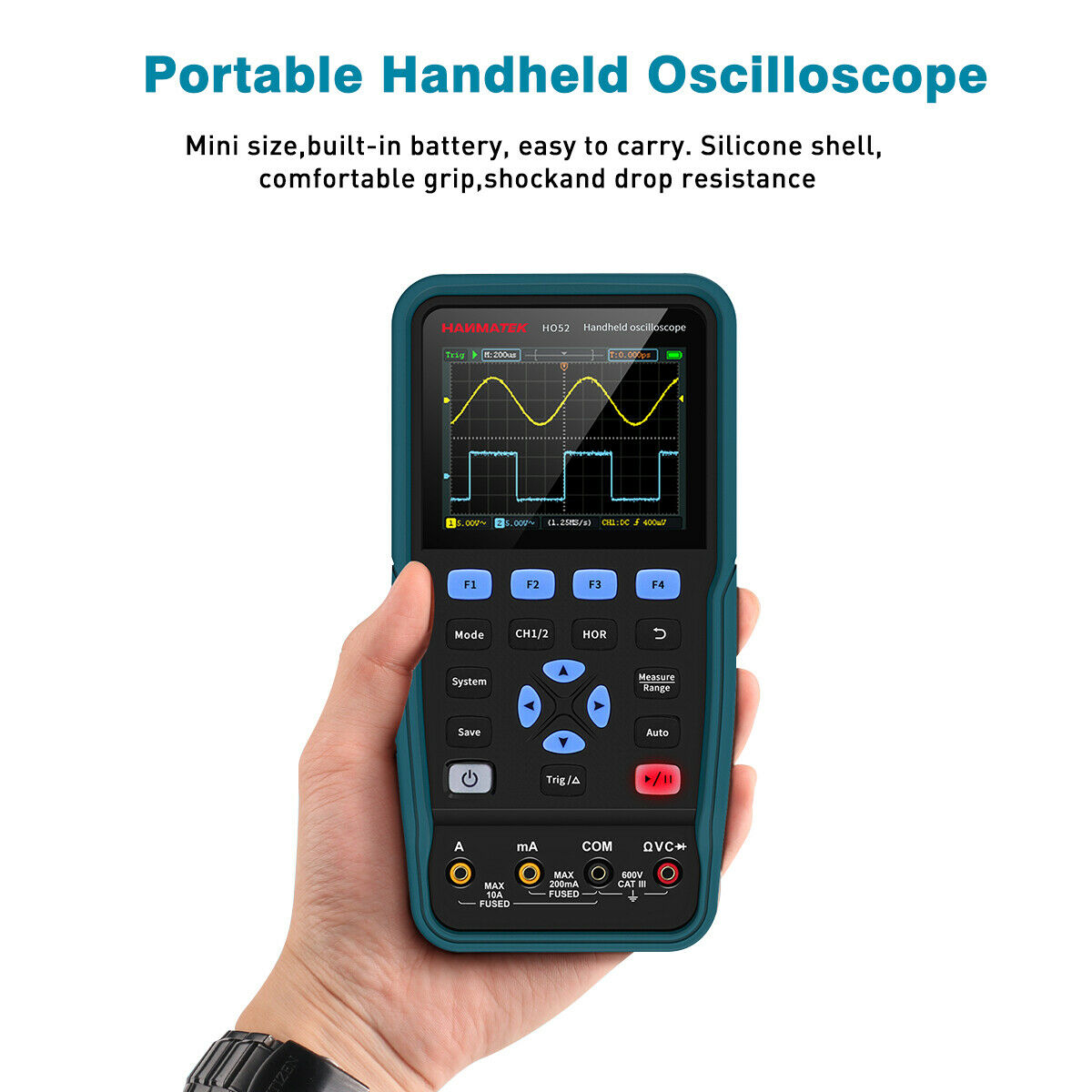

Small in size and easy to carry, you can take it with you to anywhere you want to use it.

Dual sampling mode: Peak sampling can be used to detect interference burrs and reduce the possibility of confusion. High refresh, deep storage features, waveform refresh rate up to 10,000wfms/s, 8K storage depth, easy capture of abnormal events, low probability events.

Support 7 kinds of automatic measurement: frequency, period, amplitude, maximum, minimum, average, peak-peak. Up to 6 automatic measurements can be displayed on the screen simultaneously.

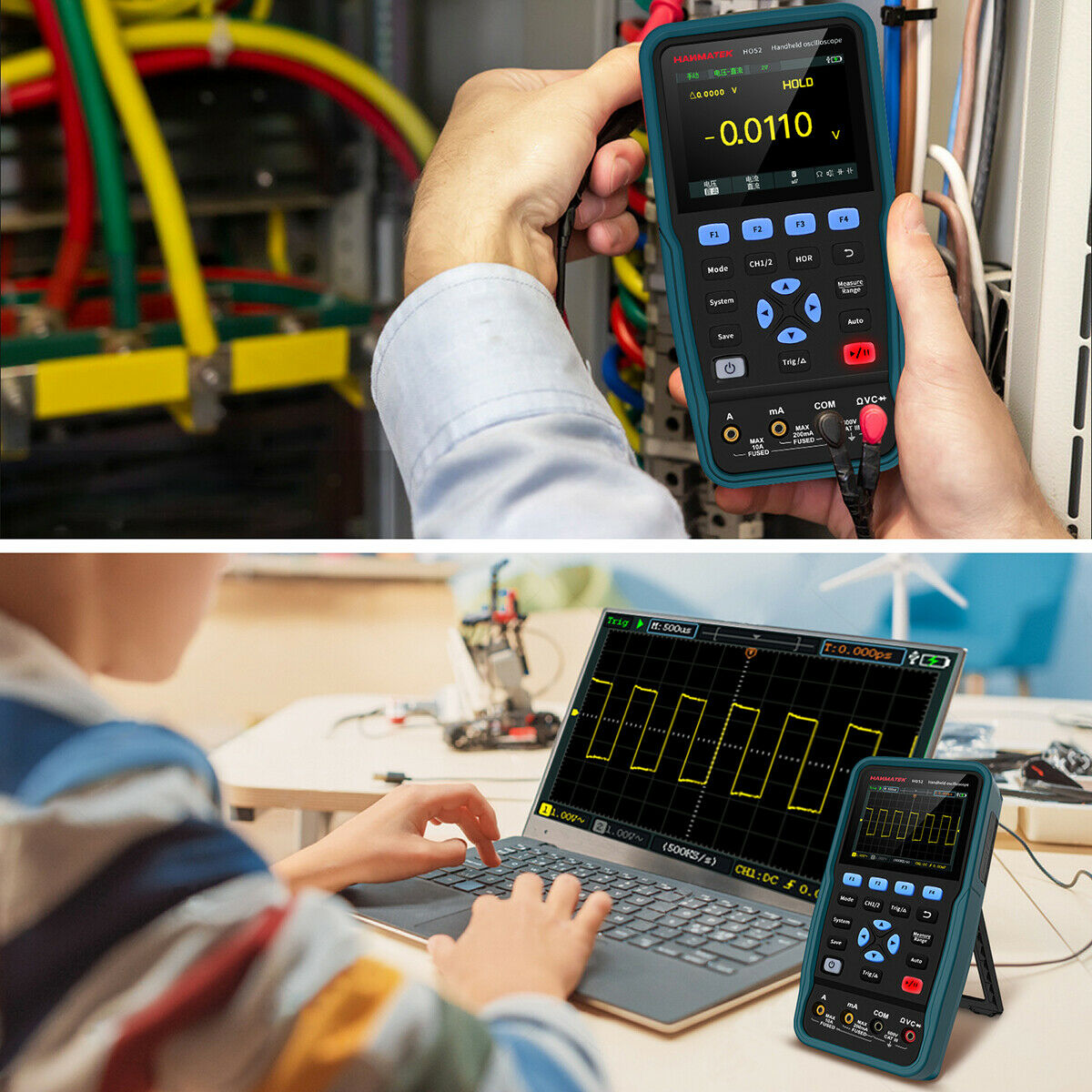

After the USB Type-C interface is used to connect the computer, the computer can read the saved pictures or CSV waveform, which is convenient to view and analyze the waveform or share waveform data in the later stage.

As the multimeter, it support measuring voltage, current, resistance, capacitance, diode, and on-off test.



Specifications

Brand: HANMATEK

Material: ABS

Channel: 2

Sample rate: 250MSa/s

Waveform refresh rate: 10000 wfms/s

Record length: Max.8K

Input coupling: Direct current, AC, Ground

Input impedance: 1MΩ+2%, in parallel with 16 pF±10 pF

Probe attenuation: 1X,10X, 100X, 1000X

Max. input voltage: 400V (Direct current+AC, PK: PK)

Bandwidth limit(typical): 50MHz

Time base ranges: 5ns/div 1000s/div, step by 1-2-5

Sensitivity resolution:10 mVi/div~10 V/div

Trigger type: e-dge trigger

Trigger mode: automatic, normal, single

Input impedance: 10MΩ

Max. input voltage: AC750V, Direct Current 1000V

Max. input current: 10A

Diode: 0~2V

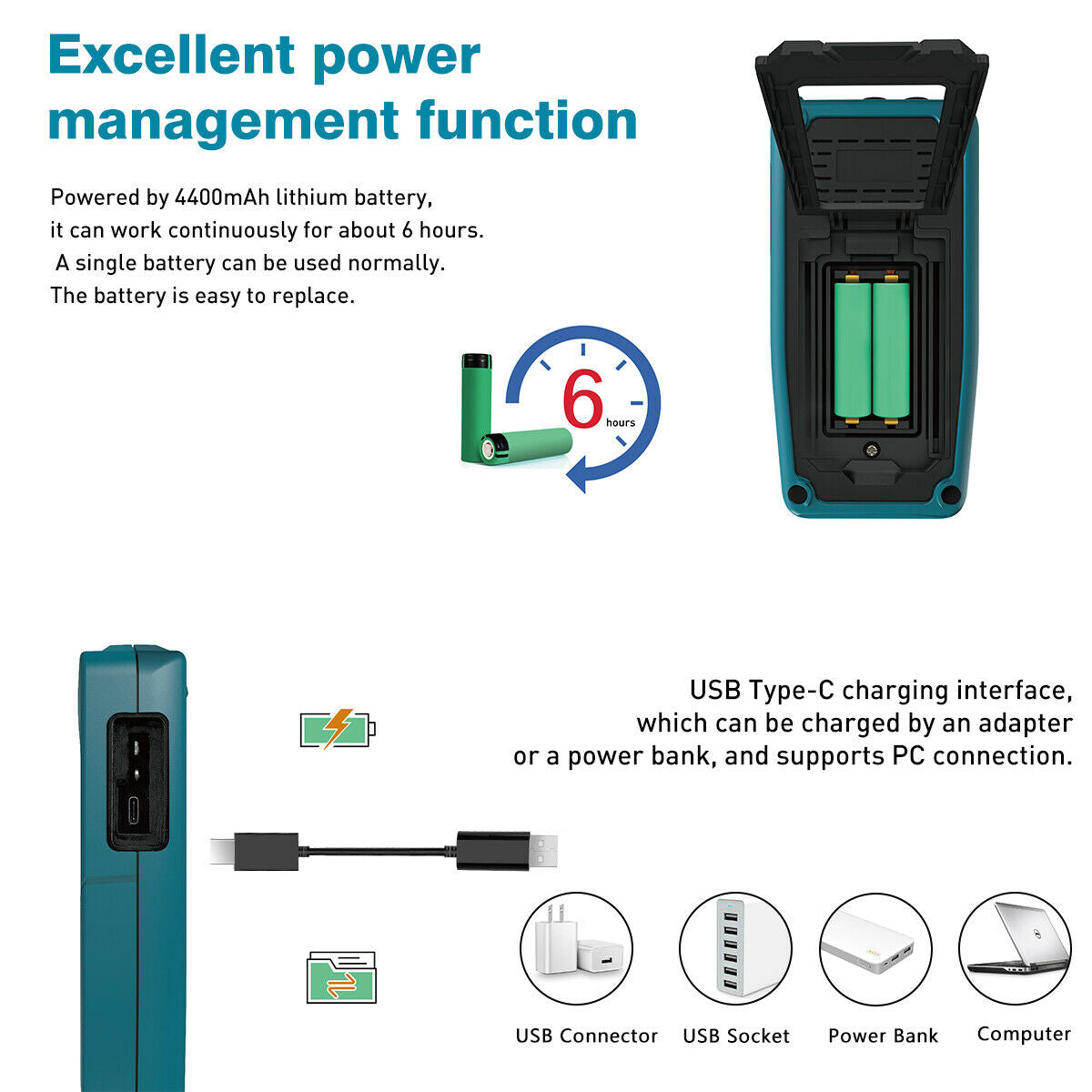

Battery: 1 * lithium battery, 4400mAh (included)

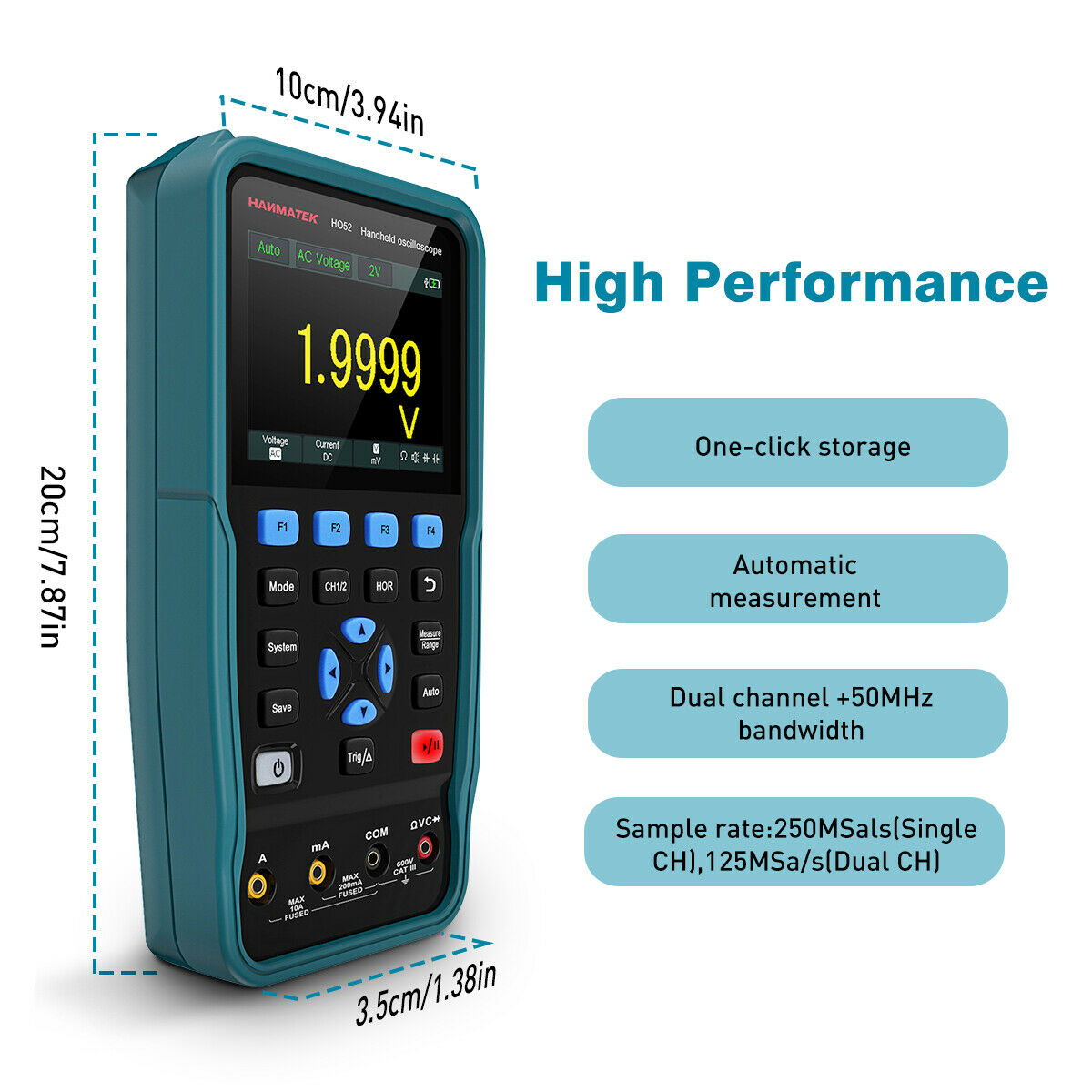

Package size: 230 * 135 * 75mm / 9.1 * 5.3 * 3.0in

Package weight: 1100g / 2.4lb

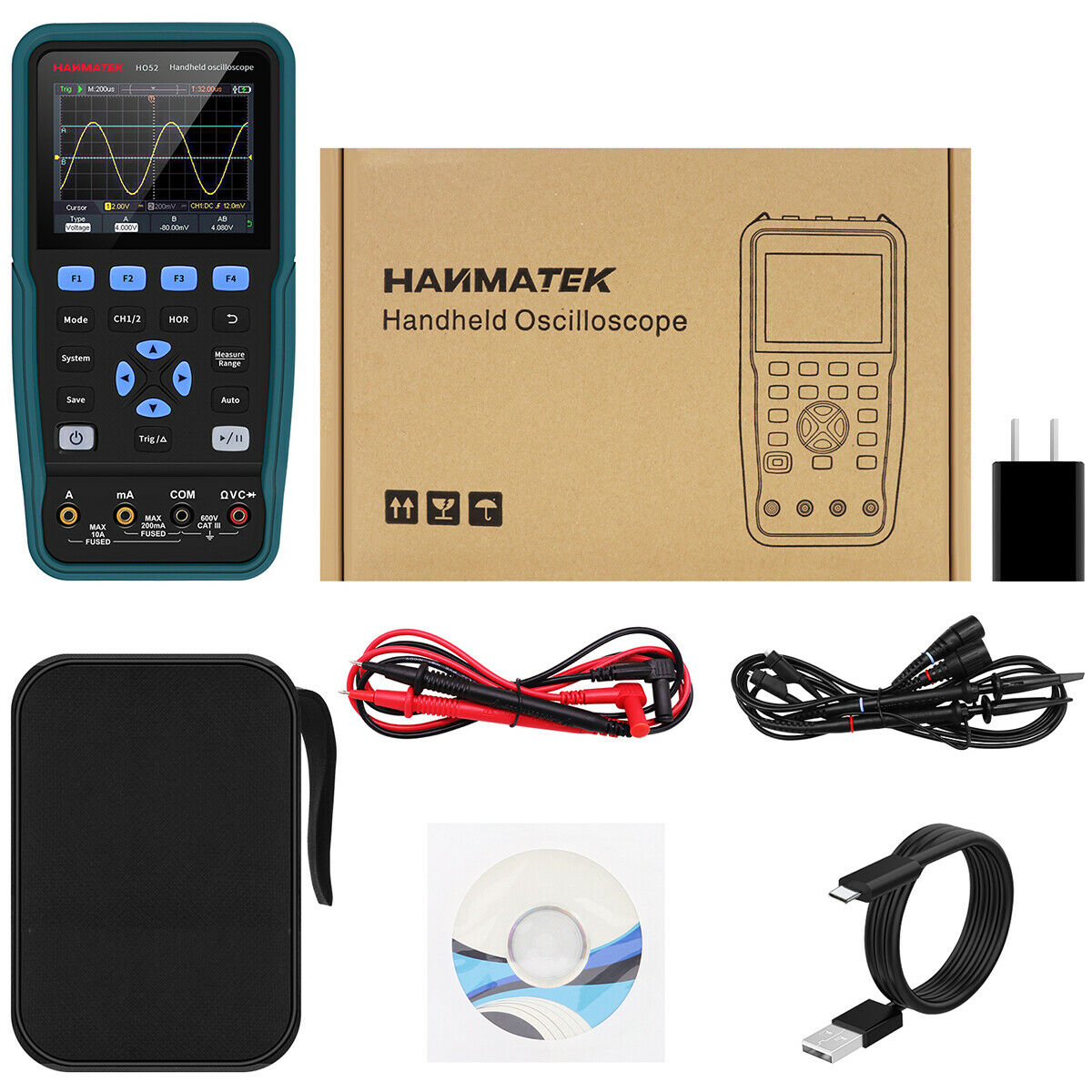

Package Included:

1 x 2 IN 1 Handheld Digital Oscilloscope Multimeter

1 x Carry Bag

1 x Oscilloscope Probe Pen

1 x Calibration Pen

1 x USB Cable

1 x Multimeter Pen

1 x User Manual

1 x Compact Disc
